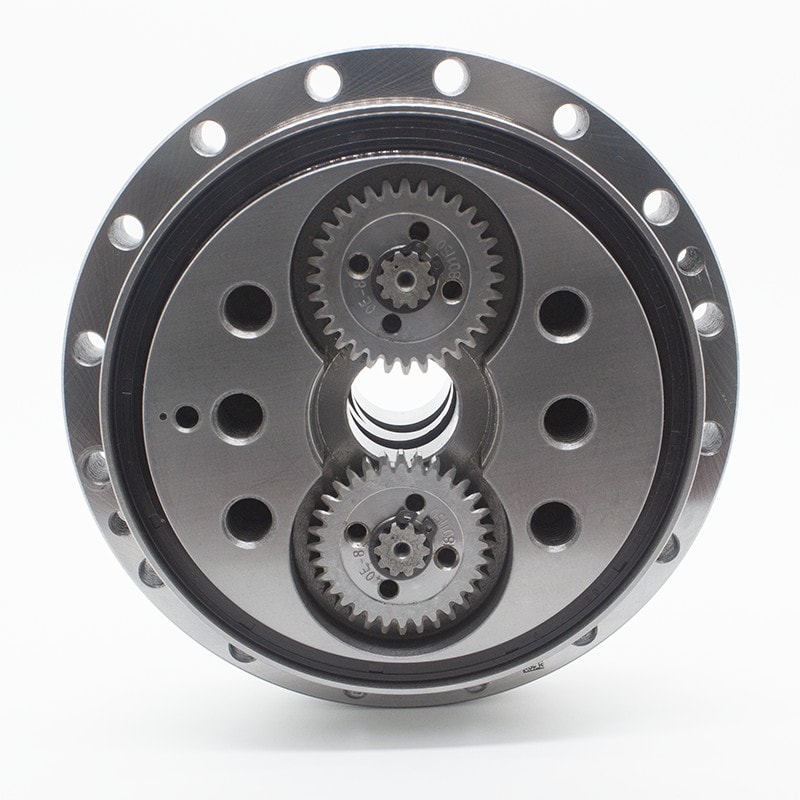

The WRV-E series RV reducers feature:
1. Built-in angular contact ball bearings that support external loads, provide high bending rigidity and allow for high permissible bending moments, improving reliability.
2. Two-stage reduction design:
The slower orbital speed of the wobble gear results in lower vibration. The direct connection between the motor and input gear reduces inertia.
3. Planet carrier support structure:
High torsional rigidity, low vibration, and strong shock resistance.
4. Roller bearing contacts:
Low starting torque, low wear, long service life, and tight arcmin gear backlash.
5. Wobble gear and spline gear design:
Tight gear backlash and strong shock resistance.
Simultaneous meshing of multiple wobble and spline gear teeth effectively resists shock loads.
Parameters of WRV-E series RV reducers
Output speed(r/min) | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | Bending moment rigidity Nm/arc.min. (kgf-m/arc.min.) |
Allowable bending moment Nm(kgf-m) |
Instantaneous maximum allowable bending moment Nm(kgf-m) |
Allowable maximum output speed r/min |
Opening and stopping allowable moment Nm(kgf-m) |
Instantaneous maximum allowable torque Nm(kgf-m) |
Empty ride MAX. Arc.min. |
Torsional stiffness Nm/arc.min. (kgf-m/Arc.min.) |
Weight Kg |
|||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Type | Reduction ratio |
Output Torque |
Input Power |
Output Torque |
Input Power |
Output Torque |
Input Power |
Output Torque |
Input Power |
Output Torque |
Input Power |
Output Torque |
Input Power |
Output Torque |
Input Power |
Output Torque |
Input Power |
Output Torque |
Input Power |
||||||||||
Planet carrier rotation |
Pin housing rotation |
Nm (kgf-m) |
kW | Nm (kgf-m) |
kW | Nm (kgf-m) |
kW | Nm (kgf-m) |
kW | Nm (kgf-m) |
kW | Nm (kgf-m) |
kW | Nm (kgf-m) |
kW | Nm (kgf-m) |
kW | Nm (kgf-m) |
kW | ||||||||||
WRV20E | 57 | 56 | 231 (23.6) |
0.16 | 188 (19.2) |
0.26 | 167 (17.0) |
0.35 | 153 (15.6) |
0.43 | 143(14.6) | 0.50 | 135(13.8) | 0.57 | 124(12.7) | 0.7 | 115(11.8) | 0.81 | 110(11.2) | 0.92 | 372 (38) |
882 (90) |
1764 (180) |
75 | 415 (42) |
833 (85) |
1' | 49(5) | 4.7 |
81 | 80 | ||||||||||||||||||||||||||||
105 | 104 | ||||||||||||||||||||||||||||
121 | 120 | ||||||||||||||||||||||||||||
141 | 140 | ||||||||||||||||||||||||||||
161 | 160 | ||||||||||||||||||||||||||||
WRV40E | 57 | 56 | 57.2 (58.4) |
0.40 | 465 (47.4) |
0.65 | 412 (42.0) |
0.86 | 377 (38.5) |
1.05 | 353(36.0) | 1.23 | 334 (34.1) |
1.40 | 307 (31.3) |
1.71 | 287 (29.3) |
2.00 | 271 (27.7) |
2.27 | 931 (95) |
1666 (170) |
3332 (340) |
70 | 1029 (105) |
2058 (210) |
1' | 108(11) | 9.3 |
81 | 80 | ||||||||||||||||||||||||||||
105 | 104 | ||||||||||||||||||||||||||||
121 | 120 | ||||||||||||||||||||||||||||
153 | 152 | ||||||||||||||||||||||||||||
WRV80E | 57 | 56 | 1088 (111) |
0.76 | 885 (90.3) |
1.24 | 784 (80.0) |
1.64 | 719 (73.4) |
2.01 | 672(68.6) | 2.35 | 637 (65) |
2.67 | 584(59.6) | 3.26 | 546(55.7) | 3.81 | 517(52.8) | 4.33 | 1176 (120) |
2156 (220) |
4312 (440) |
70 | 1960 (200) |
3920 (400) |
1' | 196(20) | 13.1 |
81 | 80 | ||||||||||||||||||||||||||||
101 | 100 | ||||||||||||||||||||||||||||
121 | 120 | ||||||||||||||||||||||||||||
153 | 152 | ||||||||||||||||||||||||||||
WRV110E | 81 | 80 | 1499 (153) |
1.05 | 1215 (124) |
1.70 | 1078 (110) |
2.26 | 990 (101) |
2.76 | 925 (94.4) |
3.23 | 875(89.3) | 3.67 | 804 (82.0) |
4.49 | 1470 (150) |
2940 (300) |
5880 (600) |
50 | 2695 (275) |
5390 (550) |
1' | 294(30) | 17.4 | ||||
111 | 110 | ||||||||||||||||||||||||||||
161 | 160 | ||||||||||||||||||||||||||||
175.28 | 174.28 | ||||||||||||||||||||||||||||
WRV160E | 81 | 80 | 2176 (222) |
1.52 | 1774 (181) |
2.48 | 1568 (160) |
3.28 | 1441 (147) |
4.02 | 1343 (137) |
4.69 | 1274 (130) |
5.34 | 2940 (300) |
3920 (400) |
7840 (800) |
45 | 3920 (400) |
7840 (800) |
1' | 392(40) | 26.4 | ||||||
101 | 100 | ||||||||||||||||||||||||||||
129 | 128 | ||||||||||||||||||||||||||||
145 | 144 | ||||||||||||||||||||||||||||
171 | 170 | ||||||||||||||||||||||||||||
WRV320E WRV320E3 |
81 | 80 | 4361 (445) |
3.04 | 3538 (361) |
4.94 | 3136 (320) |
6.57 | 2881 (294) |
8.05 | 2695 (275) |
9.41 | 2548 (260) |
10.7 | 4900 (500) |
7056(720) | 14112 (1440) |
35 | 7840(800) | 15680(1600) | 1' | 980 (100) |
44.3 | ||||||
101 | 100 | ||||||||||||||||||||||||||||
118.5 | 117.5 | ||||||||||||||||||||||||||||
129 | 128 | ||||||||||||||||||||||||||||
141 | 140 | ||||||||||||||||||||||||||||
153 | 152 | ||||||||||||||||||||||||||||
171 | 170 | ||||||||||||||||||||||||||||
185 | 184 | ||||||||||||||||||||||||||||
201 | 200 | ||||||||||||||||||||||||||||
WRV450E | 81 | 80 | 6135 (626) |
4.28 | 4978 (508) |
6.95 | 4410 (450) |
9.24 | 4047 (413) |
11.3 | 3783 (386) |
13.2 | 7448 (760) |
8820(900) | 17640 (1800) |
25 | 11025 (1125) |
22050 (2250) |
1' | 1176 (120) |
66.4 | ||||||||
101 | 100 | ||||||||||||||||||||||||||||
129 | 128 | ||||||||||||||||||||||||||||
153 | 152 | ||||||||||||||||||||||||||||
171 | 170 | ||||||||||||||||||||||||||||
192.4 | 191.4 | ||||||||||||||||||||||||||||
201 | 200 | ||||||||||||||||||||||||||||
210.23 | 209.23 | ||||||||||||||||||||||||||||
257.84 | 256.84 |
